Concepts

Plugin lifecycle

When Rancher loads an extension, it calls the extension's default export function, passing an IPlugin instance:

export default function(plugin: IPlugin) {
  // register everything here
}

This function is called once at load time. All products, routes, and UI injections must be registered inside it.

---

IPlugin

IPlugin (imported from @shell/core/types) is the object through which your extension registers everything it contributes. The key properties and methods are:

Property / Method	Purpose
plugin.metadata	Set display name, version, and description shown in the Extensions marketplace
plugin.addProduct(def)	Register a top-level product (loads your product.ts)
plugin.addRoutes(routes)	Register Vue Router routes for your product's pages
plugin.DSL(store, productName)	Get the DSL helper functions scoped to a named product

UI injection methods (addTab, addPanel, addAction, addCard, addTableColumn) are documented individually in the Extensions API.

---

The DSL

plugin.DSL(store, productName) returns a set of helpers that define a product's navigation structure. "DSL" stands for Domain-Specific Language — a thin layer that translates your product config into the format Rancher's router and nav system expects.

Helper	Purpose
product(config)	Register the product: its icon, which store it uses, and its default landing route
basicType(names)	Add page names to the product's side menu
virtualType(config)	Define a fully custom page (not backed by a Kubernetes resource)
configureType(resource, config)	Configure how a Kubernetes resource is displayed as a page in your product

These helpers work together: virtualType or configureType defines a page; basicType makes it visible in the side menu.

---

What is a top-level product?

A "top-level product" inside the Rancher UI is a product that interacts with the Rancher cluster and may interact with one or several downstream clusters, depending on the code you develop for it.

When you register a product using the example below:

// registering a top-level product
product({
  icon: 'gear',
  inStore: 'management',
  weight: 100,
  to: {
    name: `${ YOUR_PRODUCT_NAME }-c-cluster-${ CUSTOM_PAGE_NAME }`,
    params: {
      product: YOUR_PRODUCT_NAME,
      cluster: BLANK_CLUSTER
    }
  }
});

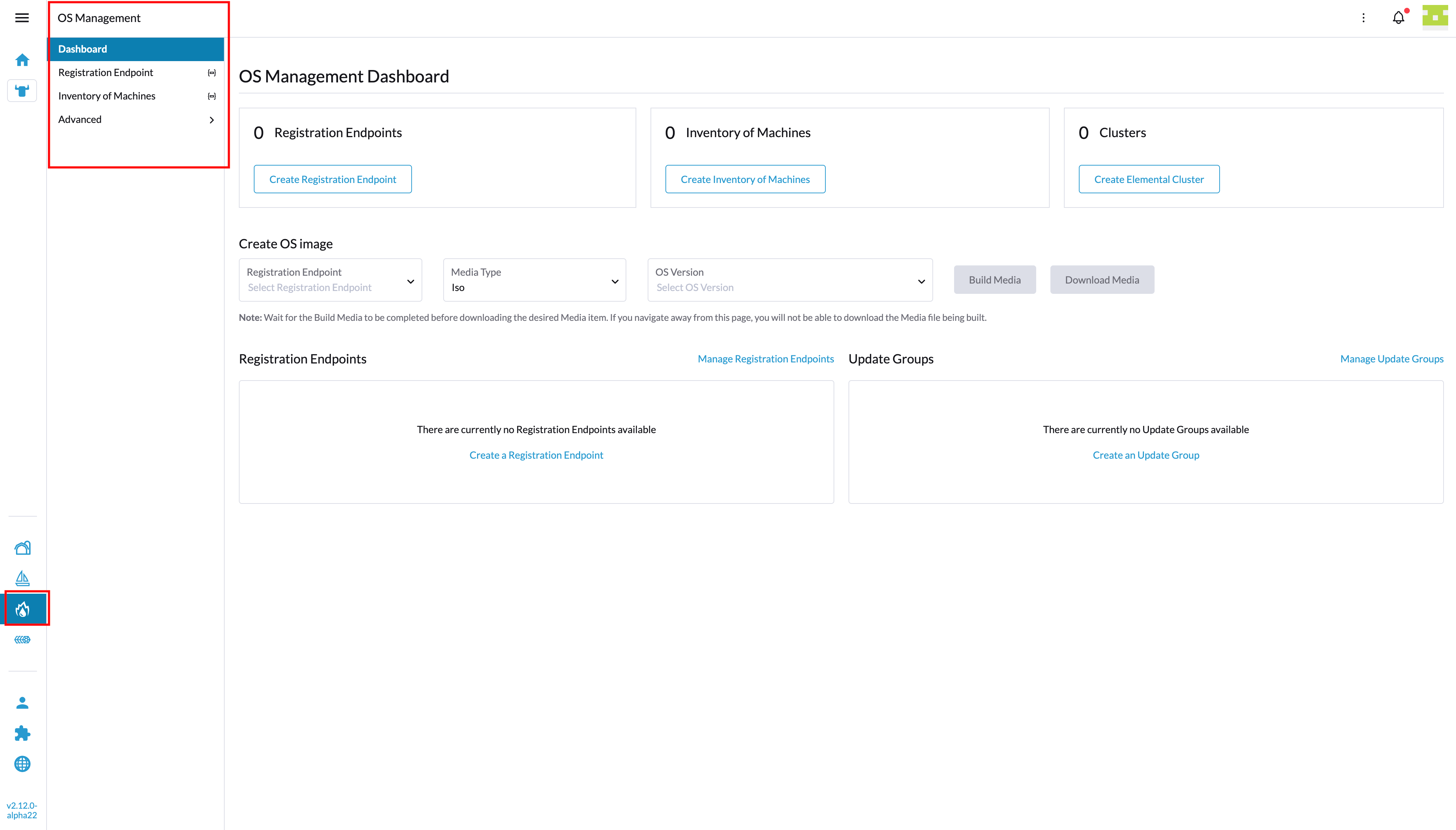

You will be registering a new app/product that is global to the whole Rancher UI, much like Fleet or Cluster Management, and as a side-effect an icon will appear on the main side bar of Rancher:

All the pages that you register inside this product will appear as links on it's dedicated sub-menu providing that all the correct functions are used.

What is a cluster-level product?

A "cluster-level product" inside the Rancher UI is a product that interacts with the Rancher cluster and can only interact with one downstream cluster.

When you register a product using the example below:

// registering a cluster-level product
product({
  icon:    'gear',
  inStore: 'cluster', // this is what defines the extension as a cluster-level product
  weight:  100,
  to:      {
    name:   `c-cluster-${ YOUR_PRODUCT_NAME }-${ CUSTOM_PAGE_NAME }`,
    params: { product: YOUR_PRODUCT_NAME }
  }
});

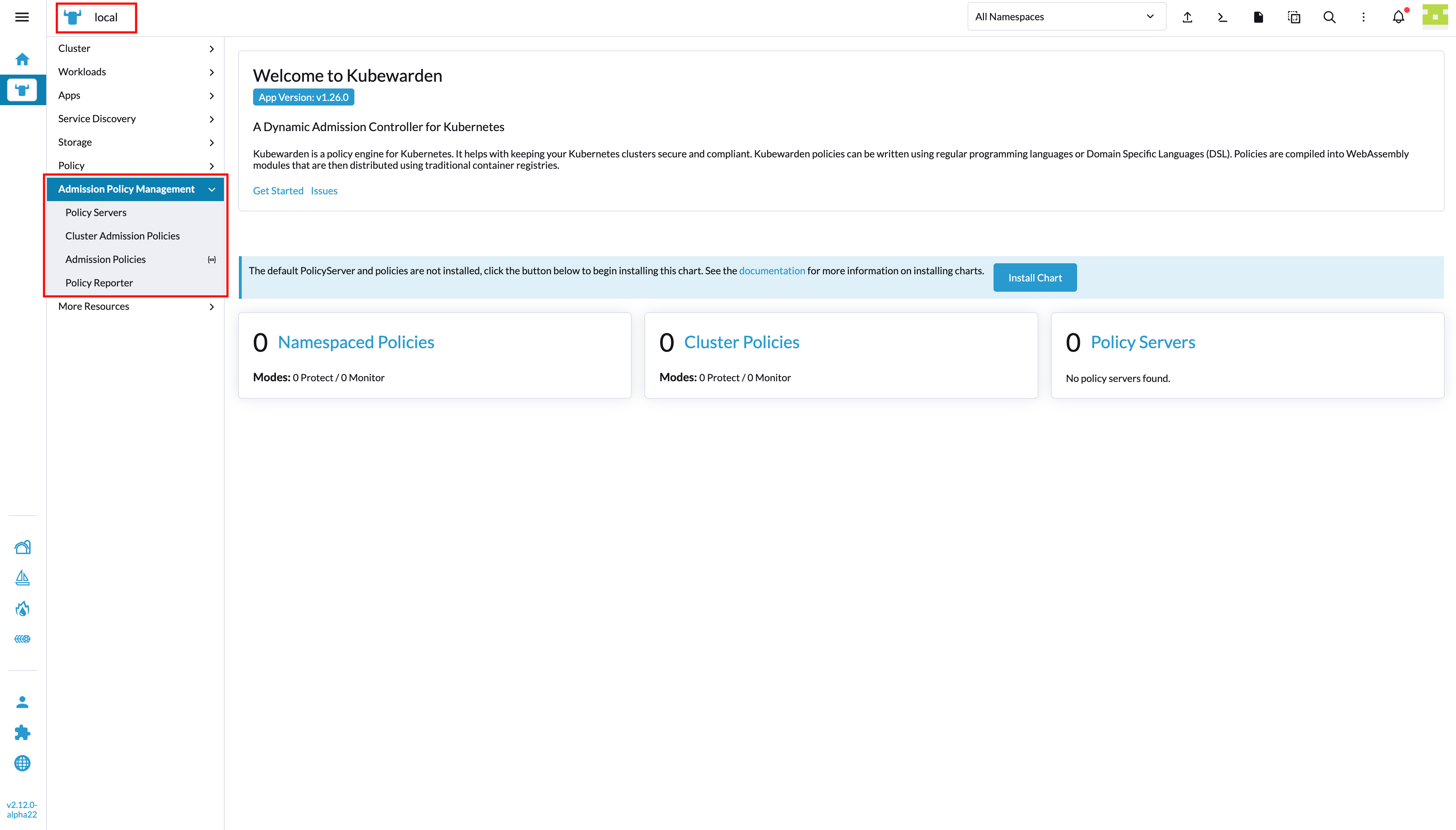

You will be registering a new app/product that only appears in the context of "Cluster explorer", like:

All the pages that you register inside this product will appear as links on it's dedicated sub-menu providing that all the correct functions are used.

Overview on routing structure for Rancher Dashboard

To become familiar with routing on VueJS and route definition we recommend that you should give a read about the Essentials on Vue Router and also the definition of a Vue Router route.

Rancher Dashboard follows a specific route pattern that needs to be fulfilled in order for Extensions to work properly with the current overall logic of the application. That pattern needs on the url path to include which product we are trying to load and which cluster we are using.

As example of an existing route, say the Fleet product, let's look at the current url structure for it:

<-YOUR-RANCHER-INSTANCE-BASE-URL->/c/_/fleet

In terms of the route definition (Vue Router), we would translate this url to:

const clusterManagerRoute = {
  name: 'c-cluster-product',
  path: 'c/:cluster/:product',
  params: {
    cluster: '_',
    product: 'fleet'
  },
  meta: {
    cluster: '_',
    product: 'fleet'
  }
}

As we can see from the example above, we have defined on the path the wildcards for cluster and product. Also we can see the definition of params property, which is needed for internal app navigation and where we define the cluster value as _ , which in terms of the app context this means that we are using a "blank cluster" which translates that the app doesn't need to care about the cluster context for the Fleet product to run. Also we are defining product value as fleet, which in turn tells the app what is the correct product to load.

With this pattern of wildcards and params in mind, then how does the route structure should look like for a top-level Extension product? In short, we recommend following this pattern:

const YOUR_EXT_PRODUCT_NAME = 'myExtension';

const baseRouteForATopLevelProduct = {
  name: `${ YOUR_EXT_PRODUCT_NAME }-c-cluster`,
  path: `/${ YOUR_EXT_PRODUCT_NAME }/c/:cluster`,
  params: {
    cluster: '_',
    product: YOUR_EXT_PRODUCT_NAME
  },
  meta: {
    cluster: '_',
    product: YOUR_EXT_PRODUCT_NAME
  }
}

As we can see we have dismissed the product wildcard on the path and replaced it with the Extension product name to make it unique. With the product param we make sure that the is taken to the correct product at all time. This structure on the above example ensures that all the wiring needed for the Extension to work properly on Rancher Dashboard is done. There's even the case where the wildcard resource needs to be defined in order to display information about Kubernetes resources or custom CRDs. An example of a resource route in a top-level Extension product would be:

const YOUR_EXT_PRODUCT_NAME = 'myExtension';
const RESOURCE_NAME = 'my-resource-name';

const routeForATopLevelProductResource = {
  name: `${ YOUR_EXT_PRODUCT_NAME }-c-cluster-resource`,
  path: `/${ YOUR_EXT_PRODUCT_NAME }/c/:cluster/:resource`,
  params: {
    cluster: '_',
    product: YOUR_EXT_PRODUCT_NAME
    resource: RESOURCE_NAME
  },
  meta: {
    cluster: '_',
    product: YOUR_EXT_PRODUCT_NAME
  }
}

With this overview on how routing works in Rancher Dashboard, we should be ready to cover the registration of custom pages, resource pages and general route definition. For more detailed information on top-level product routing, check this page here.

If you are interested in cluster-level product routing, check this page here.
